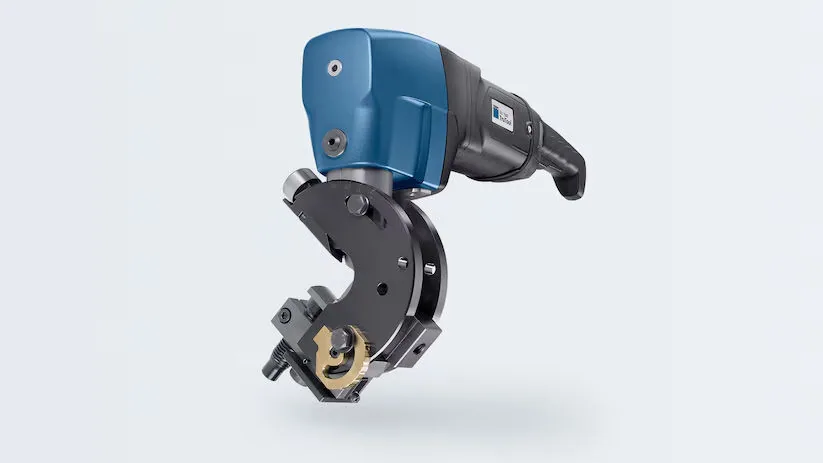

TRUMPF TruTool TKF 1500

Powerful and safe

The TruTool TKF 1500 is equipped with a powerful 2,600 W motor.Hand protection, integrated on the motor, ensures a high degree of user-friendliness and safe operation. The soft grip ensures user-friendly operation with low vibrations. This means you can always expect consistent, oxide-free results. Regardless of whether you are processing straight sheets, T-beams, or tubes. The surface roughness remains low.

2600 W motor

The extremely powerful motor ensures a high degree of durability.

Work safely

Hand protection, integrated on the motor, provides a high degree of operation safety.

The right setting

It is quick and easy to adjust the optimal settings for the chamfer height and sheet thickness

Continuously adjustable from 20° to 55°

You can use the carrier for various angles between 20° and 55°.

Maximum chamfer lengths / Maximum chamfer heights
Maximum chamfer length, steel 400 N/mm²	15 mm
Maximum chamfer height, steel 400 N/mm²	10.6 mm
Maximum chamfer length, steel 600 N/mm²	9 mm
Maximum chamfer height, steel 600 N/mm²	6.4 mm
Maximum chamfer length, steel 800 N/mm²	6 mm
Maximum chamfer height, steel 800 N/mm²	4.2 mm
Radii
Smallest radius	55 mm
General
Working speed (max.)	2 m/min
Nominal power consumption	2600 W
Sheet thickness	4 mm - 160 mm
Dimensions
Length	554 mm
Height	361 mm
Weight
Weight	16.5 kg
