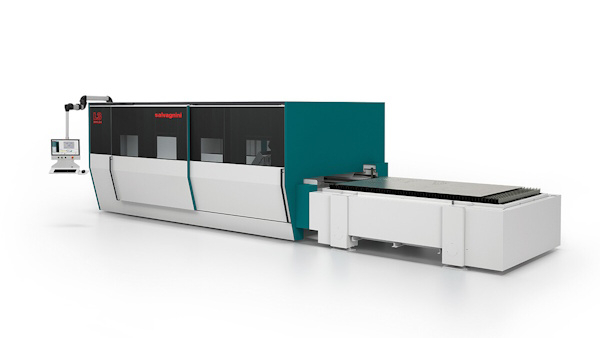

Salvagnini L3-30 8 kW

The result of lengthy experience in the field - Salvagnini was one of the first companies to invest in fiber technology - the L3 is a productive and versatile solution that offers reduced consumption and competitive operating costs as well as respecting both the environment and humankind and its work.

The laser fiber Salvagnini L3 cut with quality and low cost metals up to 20 mm. It gives a high quality sheet metal and thickness of 6 mm, 8 mm, 10 mm or 12 mm. With a beam of laser-generated and transported by fiber, the L3 can reach higher levels of speed and accuracy, with greater reliability and better performance. The simplicity in the design of the system streamlines production changes and minimizes maintenance costs: the absence of mirrors must be added a lightweight head with a single lens useful for all metals and thicknesses. The simplicity of the head allows you to work at high speeds without inertia that would compromise the quality of the piece.

Up to 70% less energy consumption, makes that L3 is consolidated as a producing machine parts of high quality with minimal cost. Generators of 2000 W 3000 W and tables up to two by four metres in length L3 allows cutting of materials such as carbon steel, stainless steel, copper, brass and pure aluminium with a maximum power of 20 kW consumption. The L3 can be connected to automation systems, allowing a set of work 24/7 with high levels of productivity.
Simplicity: automatic parameter modulation
Ergonomic design: airplane structure
Versatility: single-optic head cooled without gas
Configurability: modular automation
Quality: smart process solutions
Flexible automation:  precise & unmanned operations
Safety: class 1 machine

X Y worktable 3048x1524
Z axis stroke 100
Maximum XY speed (m/min) 156
Accuracy:
Position accuracy Pa 0.08
Average position range Ps 0.03
Cutting capacity (thicknesses)
Steel 0.5-25
Stainless steel 0.5-25
Aluminum 0.5-25
Copper 0.5-10
Brass 0.5-10
Consumption:
Maximum power consumption (kW) 34 kW
Average power consumption (kW) 20 kW
