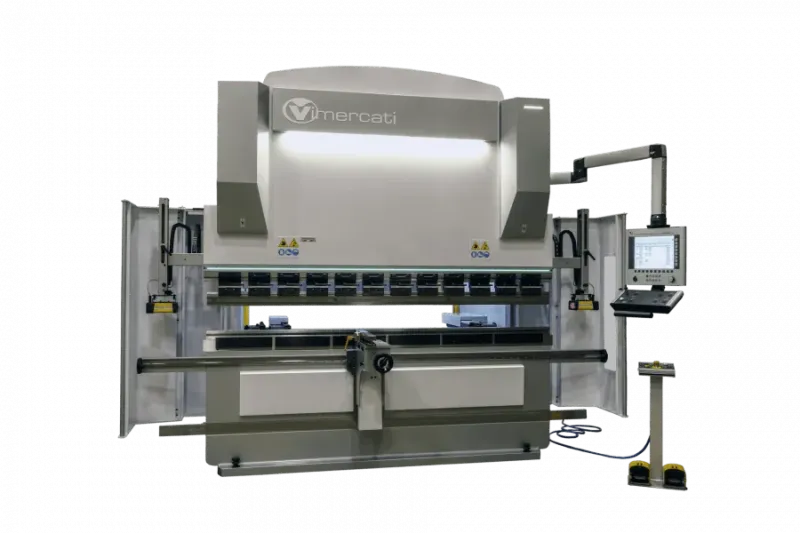

VIMERCATI PHSY 10050
A 100-tonne hydraulic press brake with a working length of about 5 metres (5050 mm) for bending long, thin sheets.
CNC hydraulic press brakes of the Vimercati PHSY series, with bending forces from 30 to 600 tonnes, are a benchmark of production reliability: they turn flat metal into flawless three-dimensional parts with micron precision and maintain perfect geometry even under round-the-clock operation.

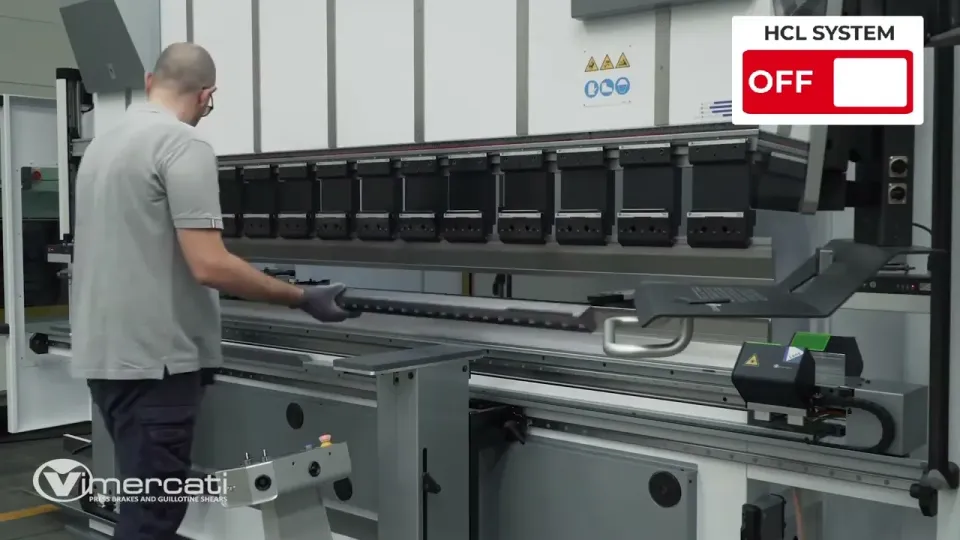

- A perfect angle from the very first part: the intelligent Active-HCL active crowning system, monitored by optical scales, reads the resistance of the metal and instantly compensates for table deflection, eliminating angle differences between the centre and the edges of the sheet without test bends.
- Enormous service life and handling of complex tapers: the one-piece forged cylinders are machined from solid steel blocks without welded seams, and the spherical joints mounting the ram fully protect the piston rods from side loads during off-centre bending.
- Stable factory precision for decades: the proprietary upper beam shape adjustment mechanism keeps the beam straight throughout the entire service life of the machine, freeing the operator for good from placing manual shims under the tooling.
- Versatility for hundreds of applications: the machines are easily adapted to produce an extremely wide range of products — from roofing elements (ridges, valleys, flashings, snow guards), gutter systems, facade cassettes and railings to instrument housings, electrical cabinets, metal doors, elevator panels, ventilation ducts, cable trays and load-bearing side members for special vehicles.
| Nominal force (t / kN) | 100 / 1000 |
| Working length PROMECAM (mm) | 5050 |
| Working length WILA (mm) | 5100 |
| Distance between columns (mm) | 4550 |
| Worktable height (mm) | 910 |
| Ram stroke, Y axis (mm) | 270 |
| Backgauge travel, X axis (mm) | 500 |
| R axis travel (mm) | 180 |
| X2 axis travel (mm) | ± 100 |
| Approach speed (mm/s) | 190 |
| Working speed (mm/s) | 10 |
| Return speed (mm/s) | 170 |
| Distance between table and ram (mm) | 460 |
| Throat depth (mm) | 500 |
| Main motor power (kW) | 7.5 |
| Oil tank capacity (l) | 220 |
| Working pressure (bar) | 250 |
| Approximate weight (kg) | 15 500 |
| Dimensions, L × W × H (mm) | 7000 × 2250 × 3300 |
F.lli Vimercati s.n.c. was founded in 1973 in Brianza, north of Milan, on the initiative of the four Vimercati brothers, who still run the company today. The company specialises in the production of high-quality, reliable press brakes and guillotine shears.
Fratelli Vimercati's production facilities cover 7,500 m², and the company employs more than 50 people – designers, engineers, mechanics and administrative staff. It has a worldwide sales network. All products are 100% made in Italy using the best components and the most advanced production technologies.
The company's philosophy is based on studying users' requirements and adapting solutions to their needs. The company pays great attention to market development and the creation of new technologies.
