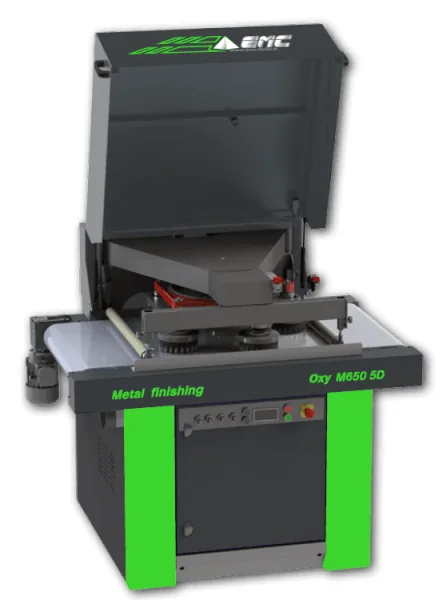

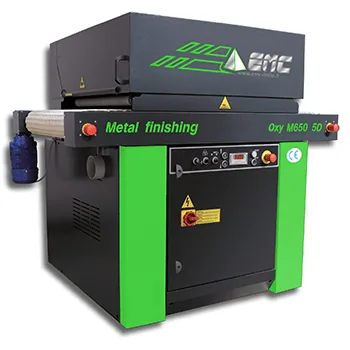

EMC OXY M650 5D
It's the industry's NEW. A compact and versatile machine initially studied and designed for calamine removal, but thanks to the quick-release tools, in a few minutes it can also be used for deburring or radiusing the edge by simply changing the type of tool.
Its useful working width of 650 mm and fixed height table of 900 mm make it compact and ideal for any type of company in the sector.
Its useful working width of 650 mm and fixed height table of 900 mm make it compact and ideal for any type of company in the sector.

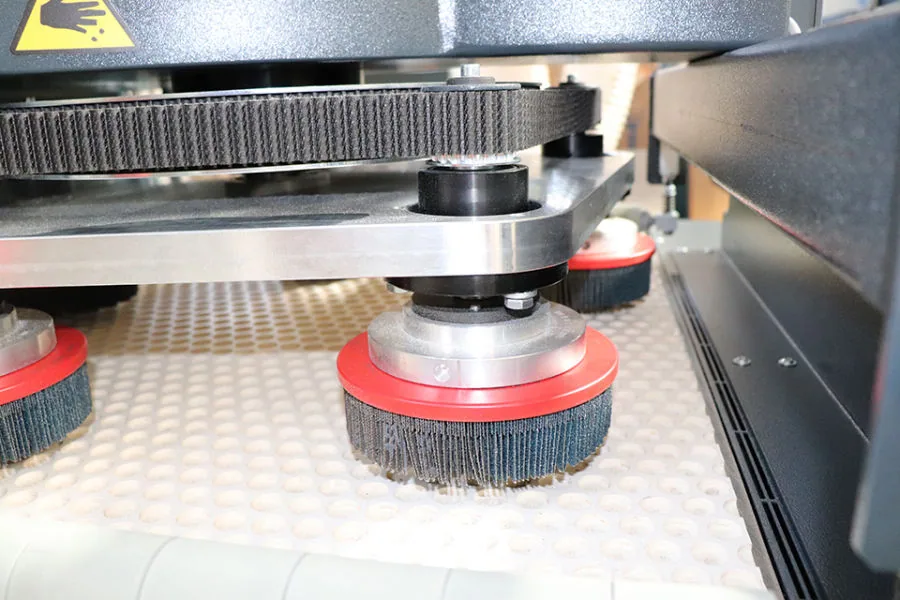

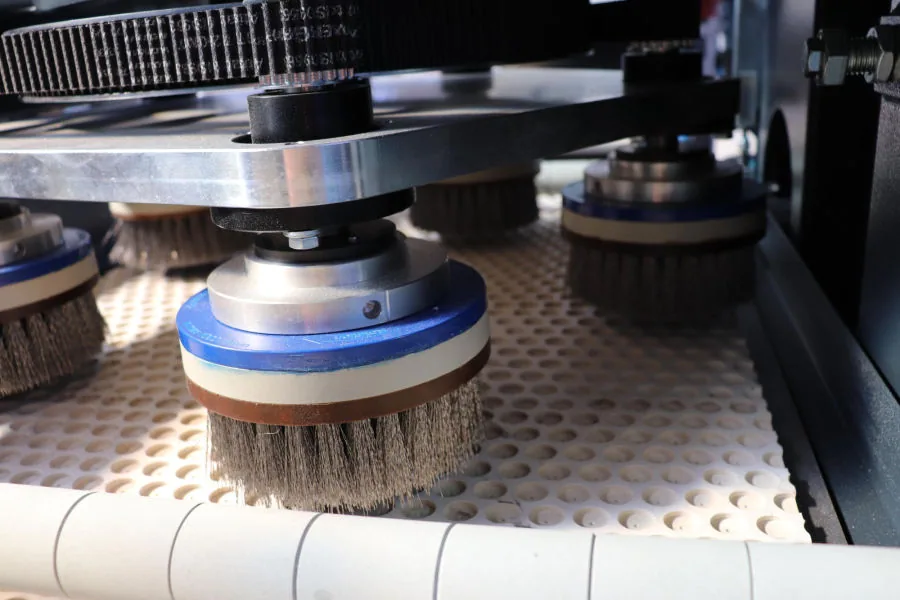

| Working unit | carousel with 5 discs |
| Rotation diameter | Ø650 mm. |
| Disc diameter | Ø150 mm. |
| Number of discs in carousel | 5 pc. |
| Motor power | 3kW shared with discs. |
| Carousel speed controlled by inverter | from 15 to 150 rpm. |
| Disc speed controlled by inverter | from 150 to 1500 rpm. |
Main parameters:
- Number of working units – 1 pc.
- Working width – 650 mm.
- Working thickness – 0,5-100 mm.
- Work table height – 900 mm.
- Total work table load – 150 kg.
- Vacuum table with inverter.
- Carousel inverter.
- Feed belt inverter.
- Quick easy discs changing device.
- Z axis automatically controlled up and down adjustment.
Types of processing:
- Dry processing.
- Grinding.
- Deslagging.
- Calamine removal.
- Edge rounding.
EMC is a recognized Italian expert from Imola, creating intelligent systems for precision metal finishing under the "Made in Italy" quality mark. Guided by the motto "Elevate your finishing touch", the company perfects parts made of any materials — from steel to innovative alloys. The brand's innovative spirit is embodied in patented orbital systems and compact "all-in-one" concepts that combine industrial power with the simplicity of touch control. EMC acts as a modern technological partner, guaranteeing flawless processing results and providing prompt remote support to its clients.
