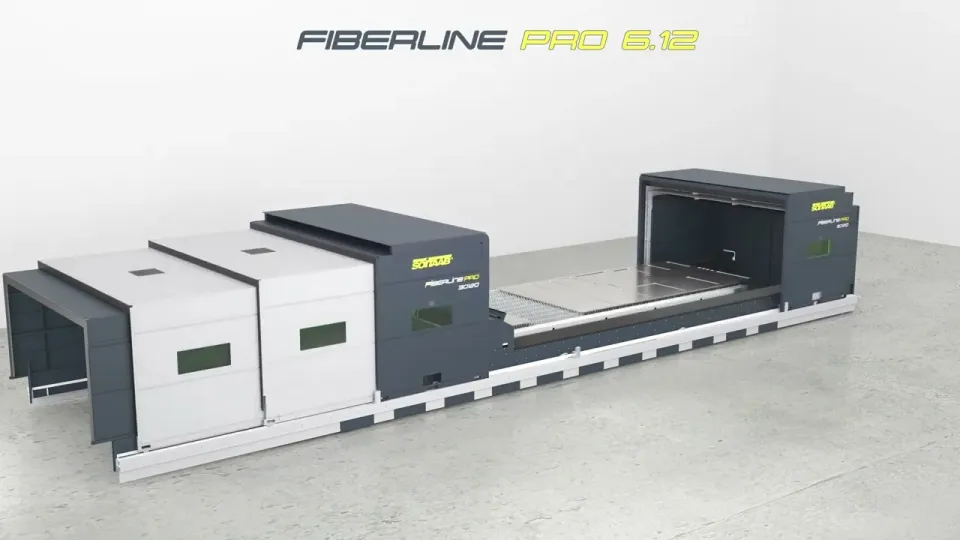

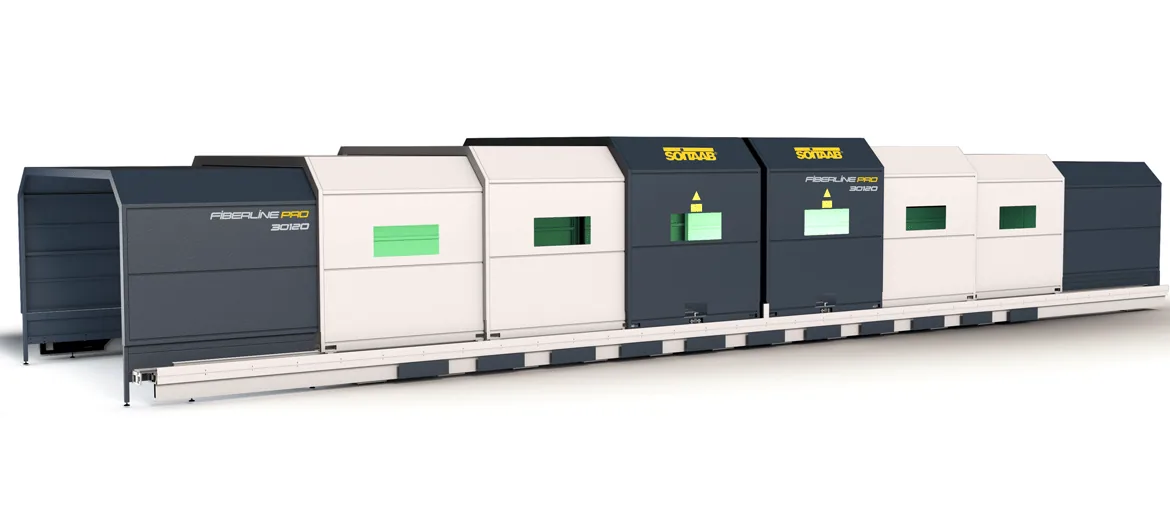

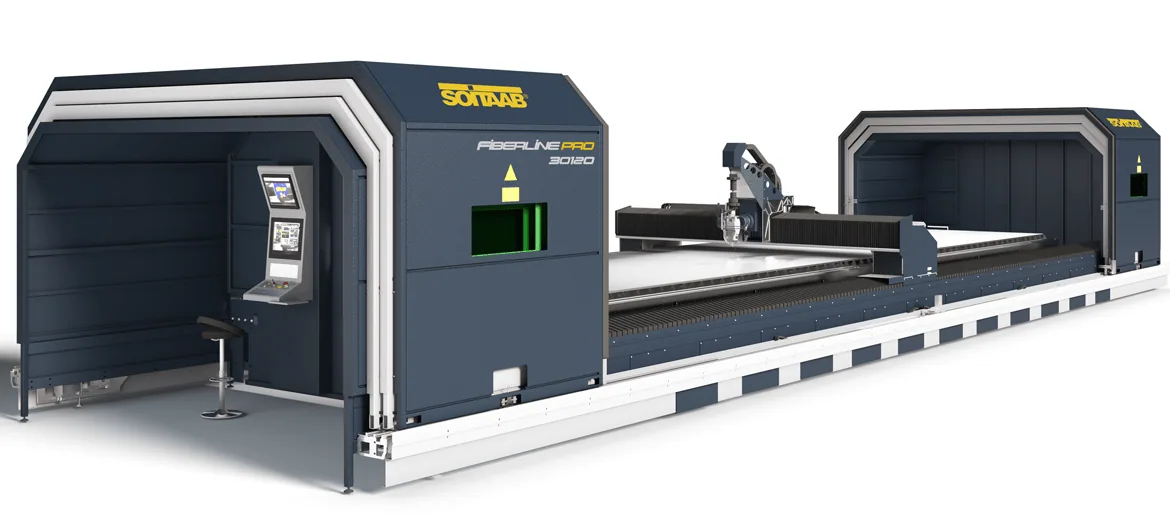

SOITAAB LASERtech Fiberline PRO
Industrial CNC fiber laser cutting machine, designed for high-precision laser cutting of medium and large format sheet metal.
| Parameter | Value |
|---|---|
| Working area formats (Area utile) | 30x60 (3 × 6 m) and 30x120 (3 × 12 m) |
| Maximum simultaneous speed | Up to 218 m/min |
| X and Y axis travel speed | Up to 155 m/min |
| Maximum acceleration (X and Y axes) | Up to 12,000 mm/s² |
| Z axis parameters | Speed up to 45 m/min, acceleration up to 14,700 mm/s² |
| Z axis stroke | 180 mm (standard carriage) / 250 mm (Bevel head) |
| Bevel cutting angles (Bevel head, A and C axes) | Up to ±45° |
| Maximum laser power | Up to 20 kW |
| Motorized focus adjustment (collimation) | Up to 45 mm |
| Protective cabin design | Fully opening, motorized, height 3000 mm |
| Video monitoring system | 3 internal cameras with output to an external screen |
| Machine weight | 39,500 kg (30x60) / 47,200 kg (30x120) |

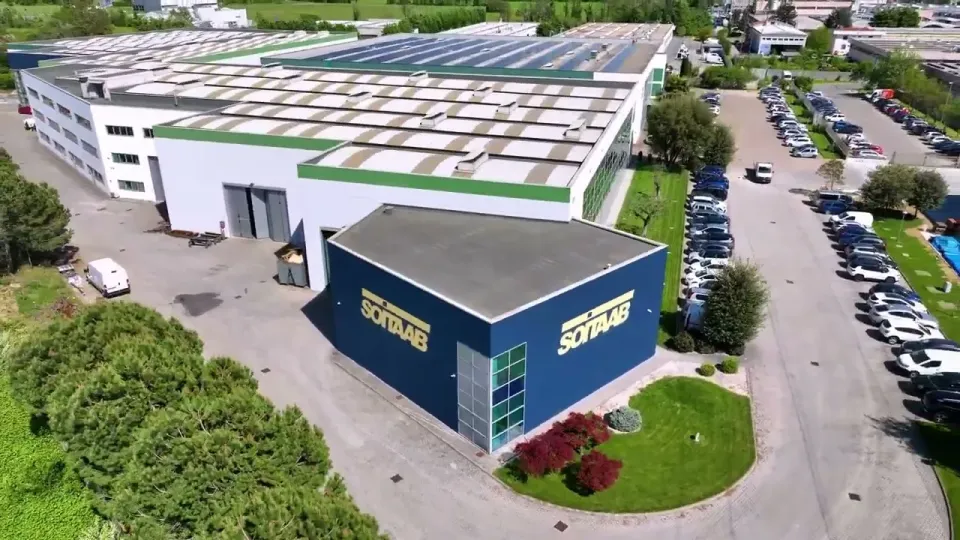

SOITAAB is an Italian industrial group and a recognised international leader in the design and manufacture of high-tech CNC thermal cutting machines (plasma, oxy-fuel, waterjet and laser), as well as industrial band saws. For many years the company has been successfully supplying equipment to every continent, combining a long tradition of mechanical engineering with advanced IT solutions and automation under a fully Italian Made in Italy production concept at its plant in Milan. The company’s operations are certified to ISO 9001, and the factory has a permanent demo area where customers from all over the world can carry out real test cuts before buying.
