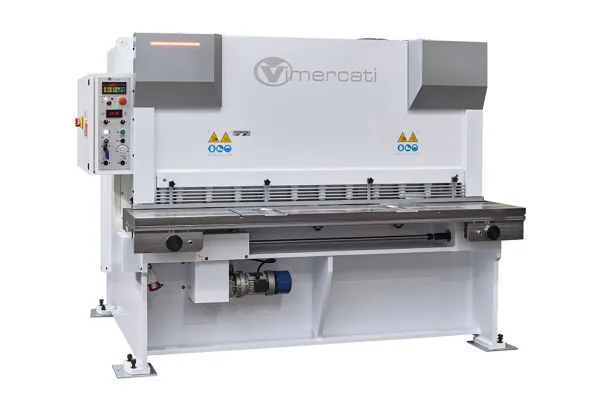

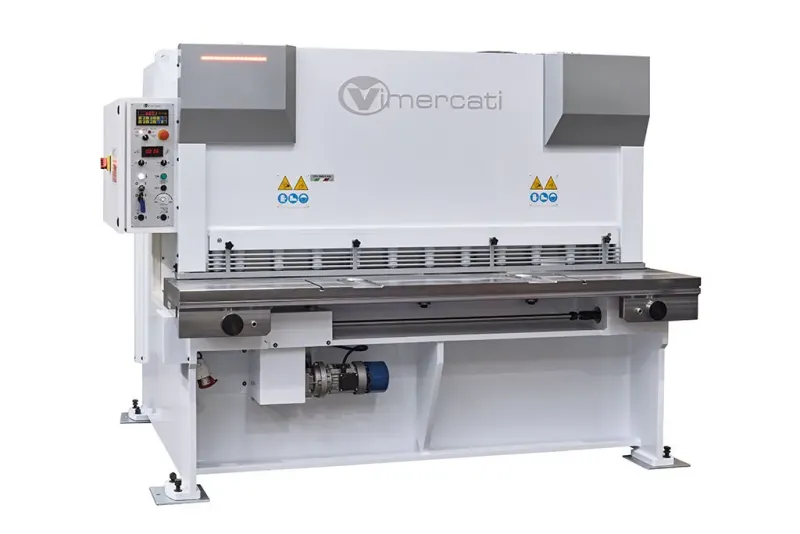

VIMERCATI CH 2008
Vimercati CH 2008 guillotine shears are made in Italy from the finest components. They are equipped with modern technologies. They are designed for cutting metal with a maximum thickness of up to 8 mm. The guillotine allows to carry out cutting of sheets under the necessary overall dimensions. The unit operates at a speed of 70 mm/s.
CH 2008 guillotine shears have an impressive list of user benefits. Among the main ones it is worth noting:
— the ability to cut a wide range of metals with different resistance and thickness up to 8 mm;
— high engine power (15 hp);
— large cutting length (2050 mm) with smooth adjustment;
— the ability to adjust the angle of the blade (up to 30 degrees).
Cutting metal on the CH 2008 guillotine is done quickly, efficiently, with minimal effort on the part of the operator. The manufacturer guarantees a long service life, uninterrupted operation and reliability of the machine, even during intensive use.
| MATERIAL | Aluminum Steel Stainless steel |
| MAX THICKNESS, MM | 8 |
| WEIGHT, KG | 7300 |
| HEIGHT, MM | 2100 |
| LENGTH, MM | 2700 |
| WIDTH, MM | 2000 |
| MOTOR POWER, HP | 15 |
| CUT LENGTH, MM | 2050 |
| DISTANCE BETWEEN RACKS, MM | 2200 |
| BACK STOP, MM | 1000 |
| SPEED, MM/S | 90 |
| MINIMUM CUT ANGLE | 30' |
| MAXIMUM CUT ANGLE | 2° 30' |
