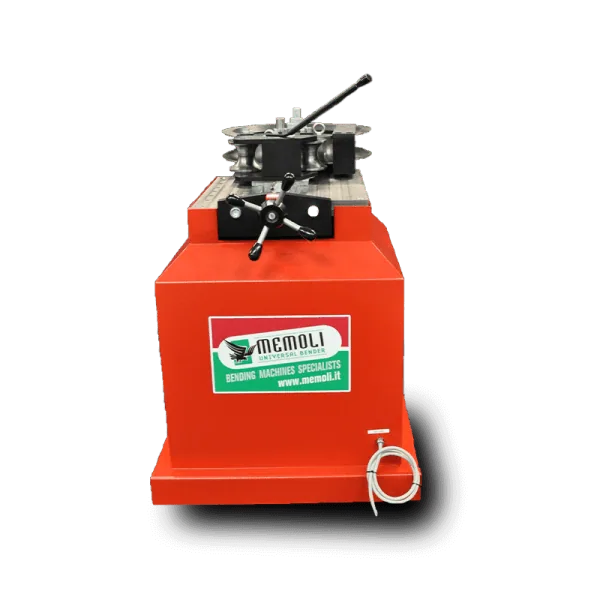

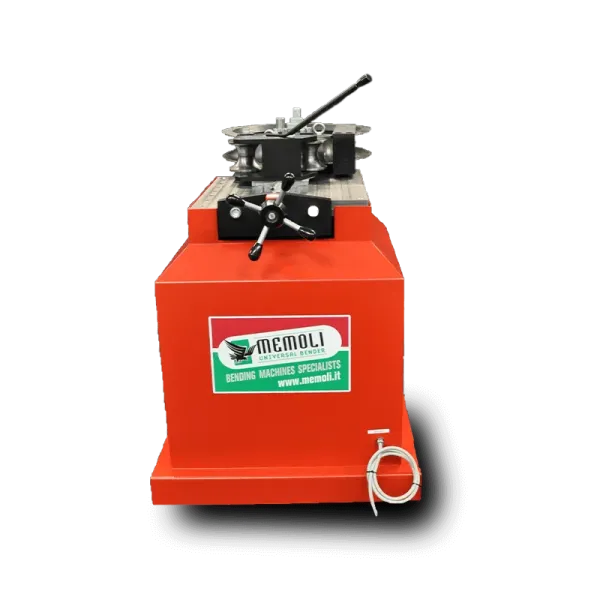

Memoli ETM 150
Our ETM 150 tube bending machine is equipped with state-of-the-art technologies for bending tubes and profiles with or without a mandrel, and can bend both right and left using special tooling. It bends tubes up to 168 x 7 mm and makes 180° bends with top finish quality at a minimum bending radius of 3 times the tube diameter.
This machine is manufactured from single steel block and the toolings are machined from solid steel. It can also have the option of fitting hydraulic vice and positioner.
The system of counter-die is specifically designed to reduce mechanical effort and to make the bending operation faster than other brands machines of the same category, thus granting a very good finishing even when bending very thin wall thicknesses.
ETM ROTARY DRAW BENDER SOFTWARE
Every ETM series machine is supplied with the “Digital Bend Programming Touch Screen 2” special software, extremely easy to use due to the intuitive “Touch” screen.
Thanks to the latest generation technologies it is possible to access main features as:
- Storage of 49 programs, each of them with a 8-stop sequences in the bending operation
- Calculation of the machine maximum bending capacities with reference to the material size to be bent
- Graphic of the minimum bending radii
- Setting of springiness material estimate (springback)
- Bend counter
- Remote connection “Industry 4.0”
Some more functions:
- Working mode: either manual or automatic
- 100 MB hard disk
- Alarm diagnosis
- Maintenance notice
| SPECIFICATION | ETM 150 |
|---|---|
| Motor power | KW 12 |
| Rotation speed * | 0,5 g/1' * |
| Gears | Oil-bath |
| Wieght | 2500 kg |
| Size | 1700 x 1400 x 1600 h. |
Maximum capacity (mm)
| MATERIAL | ETM 150 |
|---|---|
| FE 430 | 168 x 7 |
| Aluminium | 168 x 10 |
| INOX AISI 304 | 168 x 5,5 |
| Solid Bar FE 430 | 110 |
| Square Tube FE | 140 x 6 |
